Name: Autowin – Intelligent natural ventilation and EN 12101-2 certified smoke heat exhaust ventilation
Brand: Autowin

There is no better ventilation than fresh outdoor air, and no more vital protection during a building fire than dependable smoke evacuation. Autowin provides certified window actuators, control panels, and environmental sensors from WindowMaster for natural ventilation and certified smoke and heat exhaust ventilation per EN 12101-2.

Visit Official Website ↗

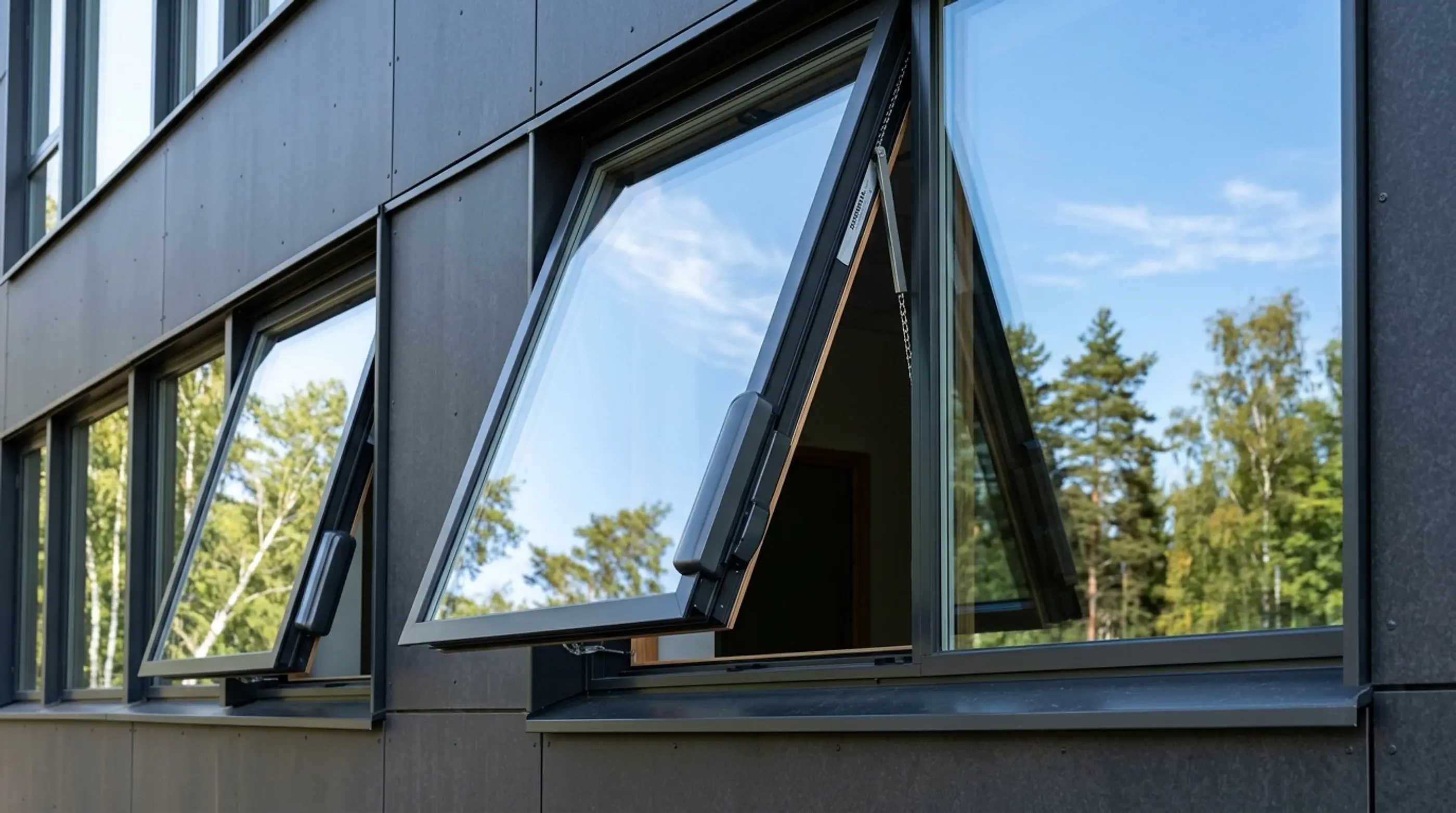

Automatiserat fönster med Autowin certifierad fönstermotor och styrsystem

Factory & SupportLenhovda, Småland (Amawood AB)

Core CompetenceSmoke Ventilation (NSHEV/RWA) & Actuation

Standards & TestsEN 12101-2 · B300 (300°C for 30 mins)

System IntegrationWindowMaster MotorLink® · BMS / KNX / BACnet

HERITAGE & ENGINEERING

Artisanal woodcraft and industrial precision in Småland

Smoke and heat exhaust ventilation (NSHEV / RWA)

In a building fire within stairwells, atriums, or public lobbies, toxic smoke and hot gases pose the immediate threat to life. A certified smoke and heat exhaust ventilator (NSHEV) according to EN 12101-2 is engineered to drive open facade or roof windows in under 60 seconds, venting toxic fumes upward and keeping evacuation routes clear.

Autowin provides complete certified packages comprising high-torque chain actuators and central control panels equipped with integral battery backup per EN 12101-10. Systems are tested and certified for temperature class B300 (300 °C operation for at least 30 minutes) and operate independently during total mains power failure.

Natural comfort cooling and automated night purging

The same actuators that safeguard human life during fire emergencies serve daily building efficiency through demand-controlled natural ventilation. By interfacing actuators with building management systems (BMS, KNX, or BACnet via WindowMaster MotorLink®), excess heat and stale CO2 are expelled quietly.

During summer months, automated night purging activates: windows open during cool nighttime hours to flush and cool the building mass, significantly lowering daytime air-conditioning energy demands while integrated weather sensors close windows at the first detection of rain.

SYSTEM OVERVIEW

Product portfolio and technical systems

SYSTEM 01

Chain Actuator WMU 831 (Smoke & Comfort)

Robust and compact 24V chain actuator delivering 300 N push/pull force for demanding windows.

Performance: 300 N thrust/traction, 24V DC operation, stroke lengths 300–1000 mm
Certification: Tested per EN 12101-2 for smoke evacuation and daily ventilation
Technology: Integrated microcontroller with MotorLink® for millimeter positioning

SYSTEM 02

Control Panel WCC 104 for Smoke Evacuation

Certified smoke control panel with integrated 72-hour battery backup per EN 12101-10.

Backup Power: Integral charger and emergency batteries providing 72h autonomy
Inputs: Monitored lines for manual break-glass call points and smoke detectors
Supervision: Continuous line-monitoring detecting wire breaks or short circuits

SYSTEM 03

Control Panel WCC 106A for Natural Comfort

Intelligent multi-zone control unit for natural ventilation, night cooling, and indoor air quality.

Control: Automated regulation based on temperature, CO2, and scheduled time channels
Compatibility: Direct bus integration with KNX, BACnet, Modbus, and local switches
Zoning: Division into multiple independent ventilation zones and facade orientations

SYSTEM 04

Weather and Rain Sensor WLA 330

Optical rain and wind sensor that automatically closes open vents during inclement weather.

Response Time: Immediate optical detection of raindrops and snowfall
Wind Guard: Adjustable wind-speed threshold protecting open sashes from gust damage
Reliability: Heated sensor surface preventing false triggers from frost and condensation

DECLARATION OF PERFORMANCE

Laboratory verified performance and tender specification

Property	Test Standard	Classification / Value	Notes
Fire Function (NSHEV / RWA)	EN 12101-2	Certified / CE Marked	Tested with window profile and actuator as one unit
Temperature Resistance	EN 12101-2	Class B300 (300 °C, 30 min)	Full operation under active fire conditions
Backup Power Supply	EN 12101-10	72 hours battery operation	Guaranteed functionality during mains failure
Ingress Protection (Actuator)	EN 60529	IP32 / IP54	Protection against dust and condensation
System Bus Protocol	WindowMaster	MotorLink® / KNX / BACnet	Two-way communication with position feedback

AMA Hus KBC.11

Actuators and controls for openable windows for smoke ventilation

Smoke and heat exhaust ventilation system manufactured by Autowin (Amawood AB / WindowMaster). Electric chain actuator type WMU 831 tested and certified in combination with window frame per EN 12101-2 Class B300. Control panel type WCC 104 with integral 72h battery backup, 230V AC mains input, 24V DC monitored actuator line. Connected to central building fire alarm system.

QUESTIONS & ANSWERS

Technical inquiries for architects and structural engineers

Which European standards must a window for smoke ventilation comply with?

A smoke ventilation window must be tested and CE-certified as an integral unit (frame, sash, hinges, and actuator) according to EN 12101-2. Autowin systems are certified for Class B300 (300 °C for 30 minutes) together with Amawood timber windows as well as major aluminum systems (Schüco, Sapa, Wicona).

What occurs if mains power fails during a building fire?

The WCC 104 control panel incorporates emergency battery backup and charging per EN 12101-10, providing at least 72 hours of full operational standby and ensuring window actuators open instantly upon alarm.

Can the same actuators be used for both smoke ventilation and daily cooling?

Yes. Using WindowMaster MotorLink® technology, the actuator operates at whisper-quiet speeds during daily comfort ventilation and night cooling, while automatically switching to full speed and maximum thrust upon receiving a fire alarm trigger.

How does Autowin interface with central building automation (BMS/KNX)?

Our control panels feature standard bus interfaces for KNX, BACnet, and Modbus, as well as potential-free relay contacts for direct connection to fire alarm panels and building management systems.

Smoke Ventilation & Window Automation

Autowin Technical Engineering

Our design engineers and production managers at the Lenhovda facility review your architectural drawings, perform thermal U-value calculations, and provide dimensioned manufacturing packages.
